Manhattan
UNITED · 1948

Manhattan

'Manhattan' was the last flipperless game made by United before they started making flipper games, beginning with United's 1948 'Wisconsin'. Pictured here is a game with flippers retrofitted at the bottom of the playfield. Each flipper has its own solenoid for individual operation. The right flipper assembly is inelegantly mounted against the ball trough. A previous owner stated this game was on a farm for decades and even spent time in an old bus, supporting the expectation that this retrofit happened a long time ago. In the envelope that accompanied this game were several apron cards, two of them pictured here, that point out the "control kicker" and replay buttons. These same cards appeared on United's flipper games that soon followed. If the retrofit flipper kit was sold by United, we could expect the kit to include these cards, to find their way into the envelope. Or maybe United installed these flippers themselves, as an experiment for the impending sales of these kits. After all, the wires to the flipper solenoids were nicely laced into the nearby cables. The serial number on this game is 4074, a relatively high number compared to the few other serial numbers of which we are aware for this production run. Perhaps United plucked this game from the tail end of the production run and experimented. This is merely fun speculation, as the flippers more likely were added by an operator or even by a distributor.

Image # 35206: Manhattan Playfield
Image # 1471: Manhattan Backglass
Image # 1473: Manhattan Overall view
Image # 1474: Manhattan Playfield
Image # 1475: Manhattan Playfield
Image # 5827: Manhattan Flyer
Image # 13896: Manhattan Cabinet
Image # 13897: Manhattan Front
Image # 44994: Manhattan Backglass
Image # 45024: Manhattan Backglass - Reverse

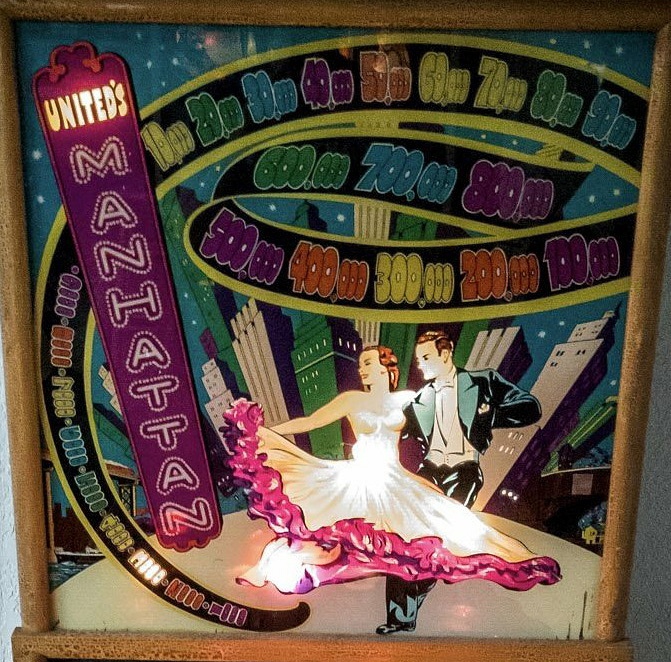

Image # 79319: Manhattan Illuminated Backglass
(Serial number 4074.)
Image # 79320: Manhattan Illuminated Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79321: Manhattan Illuminated Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79322: Manhattan Upper Playfield
(Serial number 4074.)
Image # 79323: Manhattan Lower Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79324: Manhattan Playfield - Detail (with retrofit flipper)
(Serial number 4074.)
Image # 79325: Manhattan Playfield - Detail (with retrofit flipper)
(Serial number 4074.)
Image # 79326: Manhattan Cabinet - Right (with retrofit flipper button)
(Serial number 4074.)
Image # 79327: Manhattan Inside Back Door - Detail
(Serial number 4074.)
Image # 79328: Manhattan Inside Backbox
(Serial number 4074.)
Image # 79329: Manhattan Inside Backbox - Detail
(Serial number 4074.)
Image # 79330: Manhattan Inside Backbox - Detail
(Serial number 4074.)
Image # 79331: Manhattan Under Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79332: Manhattan Under Middle Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79333: Manhattan Under Lower Playfield (with retrofit flippers)
(Serial number 4074.)
Image # 79334: Manhattan Under Playfield - Left Retrofit Flipper Solenoid
(Serial number 4074.)
Image # 79335: Manhattan Under Playfield - Right Retrofit Flipper Solenoid
(Serial number 4074.)
Image # 79336: Manhattan Under Playfield - Right Retrofit Flipper Label
(Serial number 4074.)
Image # 79337: Manhattan Instruction and Score Cards
(From the game with serial number 4074.)
Image # 79338: Manhattan Instructions for Cabinet Buttons (retrofitted flippers)
(From the game with serial number 4074.)
Image # 79339: Manhattan Retrofitted Game Envelope Contents
(From the game with serial number 4074.)
