Flipper Fair
GOTTLIEB · 1961

Flipper Fair

Compare playfield layout to Gottlieb's 1966 'Cross Town'. Pictured in this listing is a Sample game having serial number 55042 S. It differs from the production game as follows: � The backglass "Game Over" indicator is invisible until illuminated from behind. � The backglass words "Balls To Play" do not have lamps wired to illuminate them, nor holes drilled for lamp sockets. Accordingly, the Balls To Play Unit in the backbox does not have the wiper finger or contact points for those lamps. � The backbox connects to the lower cabinet using a 12-pin connector, instead of a 10-pin connector. � The lower cabinet motor board has unterminated wires stapled to the wood, for a relay not installed. � The wood strips inside the lower cabinet that support a raised playfield are one long piece on each side instead of two pieces on each side. � The lamp sockets for the center orange and green inserts are individually mounted to the underside of the playfield instead of mounted on a common metal plate. � The cardholder artwork is red and purple instead of red and blue.

Image # 4831: Flipper Fair Flyer

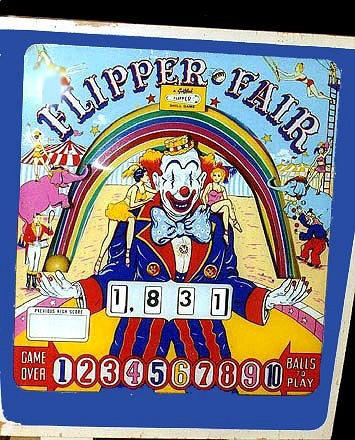

Image # 5682: Flipper Fair Backglass
Image # 5683: Flipper Fair Playfield
Image # 10472: Flipper Fair Playfield
Image # 10473: Flipper Fair Upper Playfield
Image # 10474: Flipper Fair Lower Playfield
Image # 10475: Flipper Fair Cabinet - Left
Image # 10476: Flipper Fair Cabinet - Right
Image # 10477: Flipper Fair Front
Image # 10478: Flipper Fair Under Playfield
Image # 10479: Flipper Fair Inside Cabinet
Image # 10480: Flipper Fair Inside Backbox
Image # 12745: Flipper Fair Front View
Image # 12746: Flipper Fair Backglass
Image # 12747: Flipper Fair Playfield
Image # 59443: Flipper Fair Sample Game - Illuminated Plexiglas Backglass
(Serial number 55042 S.)
Image # 59444: Flipper Fair Sample Game - Playfield
(Serial number 55042 S.)
Image # 59445: Flipper Fair Sample Game - Apron
(Serial number 55042 S.)
Image # 59446: Flipper Fair Sample Game - Cabinet - Right
(Serial number 55042 S.)
Image # 59447: Flipper Fair Sample Game - Cabinet - Front
(The metal parts are polished originals. Serial number 55042 S.)
Image # 59448: Flipper Fair Sample Game - Serial Number
(Serial number 55042 S.)
Image # 59449: Flipper Fair Sample Game - Cabinet - Front View
(The metal parts on the cabinet front are polished originals. Serial number 55042 S.)
Image # 59450: Flipper Fair Sample Game - Illuminated Front View
(The metal parts on the cabinet front are polished originals. Serial number 55042 S.)
Image # 59451: Flipper Fair Sample Game - Inside Backbox
(Serial number 55042 S.)
Image # 59452: Flipper Fair Sample Game - Under Playfield
(Serial number 55042 S.)
Image # 59453: Flipper Fair Sample Game - Inside Cabinet
(Serial number 55042 S.)
Image # 59454: Flipper Fair Sample Game - Inside Cabinet
(Serial number 55042 S.)
Image # 59455: Flipper Fair Sample Game - Plexiglas Backglass
(Serial number 55042 S.)
Image # 59456: Flipper Fair Sample Game - Backbox Insert
(There are no lamps or lamp sockets to illuminate the words 'Balls To Play' on the backglass. Serial number 55042 S.)
Image # 59457: Flipper Fair Sample Game - Balls To Play Unit
(There is no separate wiper finger or associated contacts as seen in the production unit. Serial number 55042 S.)
Image # 59458: Flipper Fair Production Game - Balls To Play Unit
Image # 59459: Flipper Fair Sample Game - Inside Illuminated Backbox
(Serial number 55042 S.)
Image # 59460: Flipper Fair Sample Game - Add Ball Score Adjustment
(In production games, the white label appears above the jacks because lamp sockets are wired below the jacks. Serial number 55042 S.)
Image # 59461: Flipper Fair Sample Game - Lamp Sockets
(The ten lamp sockets are individually mounted to the playfield. Serial number 55042 S.)
Image # 59462: Flipper Fair Production Game - Lamp Sockets
(The ten lamp sockets are mounted to a common metal plate.)
Image # 59463: Flipper Fair Sample Game - Playfield Supports
(The raised playfield rests on the same wood strip that supports the playfield when lowered. Serial number 55042 S.)
Image # 59464: Flipper Fair Production Game - Playfield Supports
(The raised playfield rests on a short strip of wood placed low in the cabinet. )
Image # 59465: Flipper Fair Sample Game - Unequipped Relay
(Black paper is used to staple the unused wires to the wood. Serial number 55042 S.)
Image # 59466: Flipper Fair Sample Game - 12-Pin Connector
(Production games use a 10-pin connector. Serial number 55042 S.)
Image # 59467: Flipper Fair Sample Game - Cardholder
(Serial number 55042 S.)
Image # 59468: Flipper Fair Production Game - Cardholder
Image # 67525: Flipper Fair Sample Game - Backglass - Detail
(Serial number 55042 S.)
Image # 67526: Flipper Fair Sample Game - Backglass - Detail
(Serial number 55042 S.)
Image # 67527: Flipper Fair Sample Game - Illuminated Playfield
(Serial number 55042 S.)
Image # 67528: Flipper Fair Sample Game - Upper Playfield
(Serial number 55042 S.)
Image # 67529: Flipper Fair Sample Game - Upper Playfield
(Serial number 55042 S.)
Image # 67530: Flipper Fair Sample Game - Illuminated Upper Playfield
(Serial number 55042 S.)
Image # 67531: Flipper Fair Sample Game - Illuminated Middle Playfield
(Serial number 55042 S.)
Image # 67532: Flipper Fair Sample Game - Illuminated Lower Playfield
(Serial number 55042 S.)
Image # 67533: Flipper Fair Sample Game - Apron
(Serial number 55042 S.)
Image # 67534: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Image # 67535: Flipper Fair Sample Game - Target
(Serial number 55042 S.)
Image # 67536: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Image # 67537: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Image # 67538: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Image # 67539: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Image # 67540: Flipper Fair Sample Game - Passive Bumper Cap
(Serial number 55042 S.)
Image # 67541: Flipper Fair Sample Game - Playfield - Detail
(Serial number 55042 S.)
Images provided by ipdb.org
