Loop the Loop (AAB)
Loop the Loop (AAB)
BALLY · 1966

Loop the Loop (AAB)

The production run quantity of this Add-a-ball version is likely included in the quantity shown for the USA replay version Bally's 1966 'Loop the Loop'. Compared to that version, the left outlane has a kickback when lit, instead of a replay Special. The outlane rollover for this kickback was placed further down in the space allotted for it, closer to the kickback mechanism, than the rollover for the replay version. The backglass has no replay window. The silkscreened numbers 0-9 that would be the match numbers on a replay game are instead used to count the added balls. Hence, the 0 number is not required and, although the backbox insert has a lamp socket in this 0 position, no wire was soldered to it. This game apparently was not exclusively for export to Italy, because the game pictured here with serial number 'LL 1660' is located in the USA and has a metal coin entrance plate marked 10�. The flippers are imprinted with the word FLIPPER, a word that was not allowed on games in Italy.

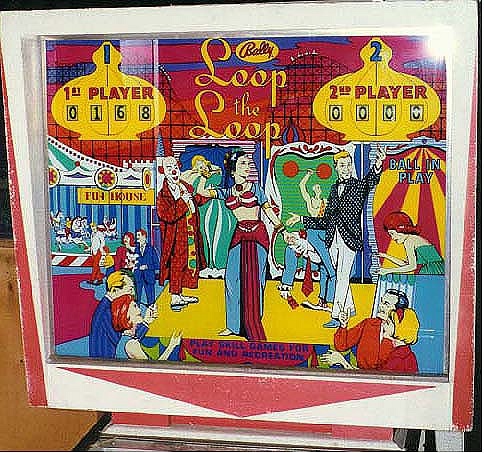

Image # 1414: Loop the Loop Backglass
Image # 1415: Loop the Loop Playfield
Image # 36933: Loop the Loop Schematic Diagram Model Number
Image # 36934: Loop the Loop Schematic Diagram - Detail (This section of the schematic shows some differences from the USA replay version.)
Image # 36935: Loop the Loop Lower Playfield (The post between the flippers is likely not original to this version for Italy.)
Image # 61603: Loop the Loop Backglass (Serial number LL 1660.)
Image # 61604: Loop the Loop Playfield (Serial number LL 1660.)
Image # 61605: Loop the Loop Upper Playfield (Serial number LL 1660.)
Image # 61606: Loop the Loop Lower Playfield (Serial number LL 1660.)
Image # 61607: Loop the Loop Lower Playfield - Downfield View (Serial number LL 1660.)
Image # 61608: Loop the Loop Apron Removed (Serial number LL 1660.)
Image # 61609: Loop the Loop Backbox - Right (Serial number LL 1660.)
Image # 61610: Loop the Loop Backbox Serial Number (Serial number LL 1660.)
Image # 61611: Loop the Loop Cabinet - Right (Serial number LL 1660.)
Image # 61612: Loop the Loop Cabinet Serial Number (Serial number LL 1660.)
Image # 61613: Loop the Loop Cabinet - Front (Serial number LL 1660.)
Image # 61614: Loop the Loop Backglass - Reverse (Serial number LL 1660.)
Image # 61615: Loop the Loop Inside Backbox (Serial number LL 1660.)
Image # 61616: Loop the Loop Inside Backbox (Serial number LL 1660.)
Image # 61617: Loop the Loop Added Ball Unit (Serial number LL 1660.)
Image # 61618: Loop the Loop Player Up Unit (Serial number LL 1660.)
Image # 61619: Loop the Loop Operator Notice (Serial number LL 1660.)
Image # 61620: Loop the Loop Add-A-Ball Adjustment (Serial number LL 1660.)
Image # 61621: Loop the Loop Operator Notices (Serial number LL 1660.)
Image # 61622: Loop the Loop Under Playfield (Serial number LL 1660.)
Image # 61623: Loop the Loop Inside Cabinet (Serial number LL 1660.)
Image # 61624: Loop the Loop Inside Cabinet - Front (Serial number LL 1660.)
Image # 61625: Loop the Loop Inside Cabinet - Front (Serial number LL 1660.)
Image # 61626: Loop the Loop Operator Options (Serial number LL 1660.)
Image # 61627: Loop the Loop Transformer Information (Serial number LL 1660.)
Image # 61640: Loop the Loop Backbox Insert - Front (Guido J. Del Signore (1910-1997) was a long-time operator in Upstate New York. A rectangular hole is where the replay mechanism would be in a replay model. Serial number LL 1660.)
Image # 61641: Loop the Loop High Score Adjustments (Up to four add-a-ball thresholds can be optioned. Serial number LL 1660.)
Image # 61642: Loop the Loop Unused Lamp Socket (The top lamp socket is not wired because the zero lamp is not needed for counting added balls. Serial number LL 1660.)
Image # 61656: Loop the Loop Apron Removed (Serial number LL 1660.)
Images provided by ipdb.org
